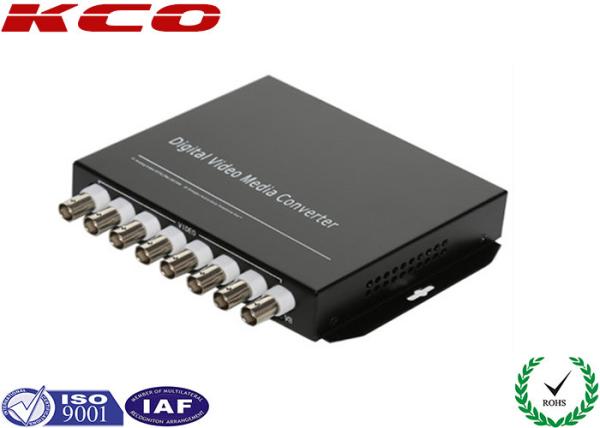

Fibre Optic Media Converter Ethernet Copper Data Voice Video Type

Name: Fibre Optic Media Converter Ethernet Copper Data Voice Video Type
Brand: KCO, Kocent Optec Limited
Price: 1 USD

China Fibre Optic Media Converter Ethernet Copper Data Voice Video Type wholesale

Brand Name : KCO, Kocent Optec Limited

Model Number : KCO-converter

Certification : ISO9001, RoHS, UL

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union,T/T,L/C

Supply Ability : 50,000pcs/month

Delivery Time : 5~7 days after get payment

Packaging Details : carton box, wooden pallet

Connector : FC / UPC

Speed : 10/100M

Distance : 20km

Data way : 5 ways

Video way : 8 ways

Optical way : 1 way

Contact Now

Fireproof Fibre Optic Media Converter Ethernet Copper Data Voice Video Type

Quick informations:

Product name: 8 video ways Data Video Optical Converter

Data way: 5 ways

Video Way: 8 ways

Optical way: 1 way

Optic connector type: FC/UPC

Fiber mode: single mode, mono mode

Transfer distance: 20km

Size: 150x190x30mm

Weight: 0.9kg/pair

Typical Application:

Intelligent transportation supervisory system (ITS)
Tele-Com projects
Intelligent Monitor to produce process
Intelligent Monitor and alarm to factory, coal mine, oil field etc,realize safe and fireproofing
High-building Security Protection

Specification:

Monitor center adopt 19 inch 1U rack, Long-distance point adopt mini box
Simplex fiber singlemode transmit VIDEO/AUDIO/PHONE/DATA
Data uncompressed fiber transmit
Automatically compatible with PAL, NTSC and SECAM video format
Semiduplex/Fullduplex data communication
Double direction Audio and phone
Audio/telephone, Ethernet for choice

Features:

TR/RE pair transports eight channels of high quality
Composite video in one direction and one channels of data in reverse directions over one optical fiber
Exceeds rs250c specifications for SNR and Differential Phase and Differential Gain
10bit liner PCM video encoding
6.5Mhz video bandwidth @-3db >67db SNR Over entire optical rang
Range up to 30km depending on model
Compatible with NTSC OR PAL OR SECAM
Compatible with the network management system
Data rs485 or rs422 or rs232

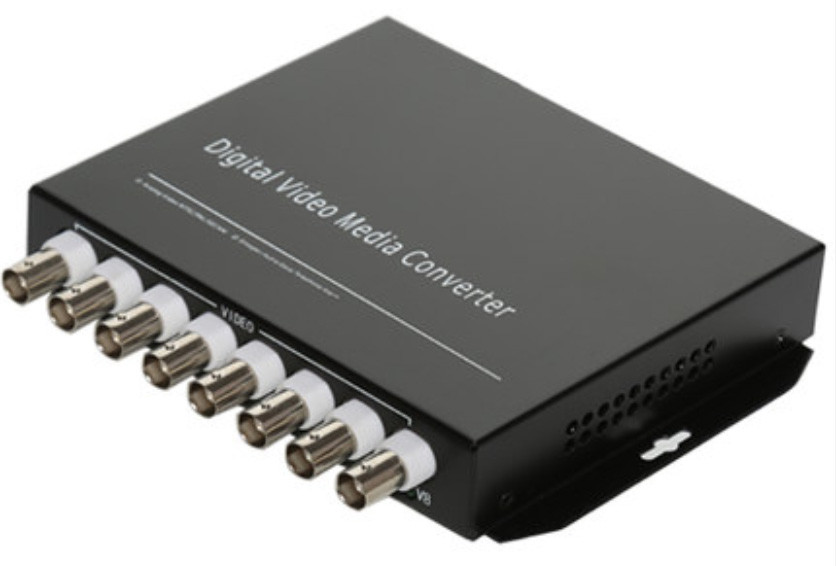

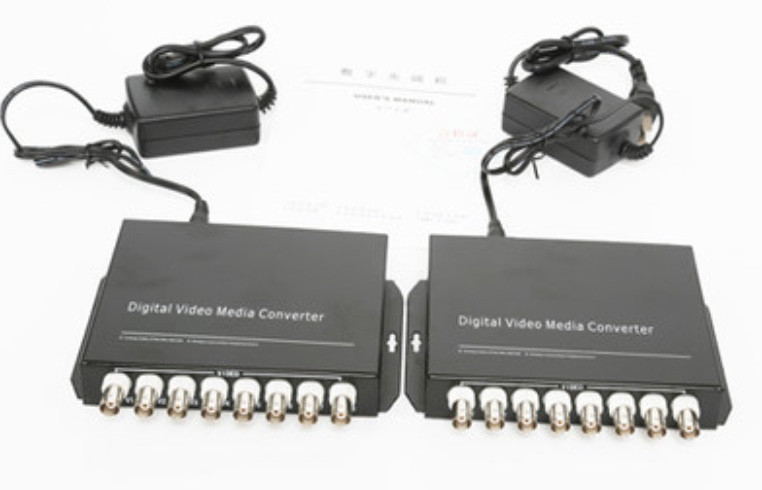

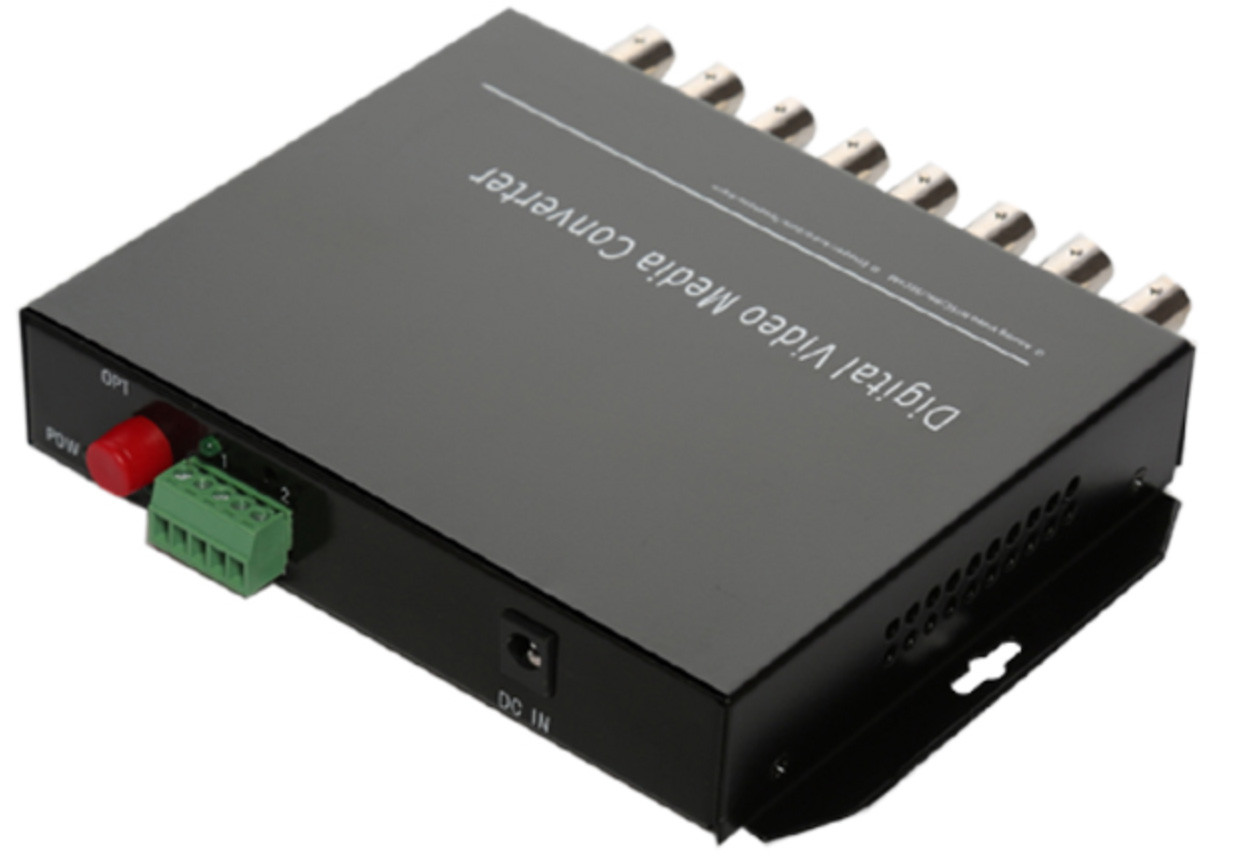

Product picutures:

Fibre Optic Media Converter Ethernet Copper Data Voice Video Type

Parameter:

1- Video

Video format NTSC PAL SECAM

Voltage 1vp-p 75Ω

Bandwidth 6.5MHZ -3db

Deferential Gain ≤0.7%

Deferential phase ≤0.7°

Video SNR ≥67dB；over usable fiber

Range for rs250 standard

Encoding 10-bit linear PCM

Sampling rate 5Mhz

Bite rate over fiber one video for 188Mbps

Eight video for 1.44Gbps

Connectors one BNCs

Data RS485

2- Power

Requirements TRANSMITTER (FT-T101d) 0.6A@6vdc

Receiver (FT-R101d) 0.7A@6vdc

3- Physical

Dimensions (in millimeters): 201(w)*195.4(d)*28(h)

Weight (in pounds): 0.68

4- Environmental

Operating temperature -35°C to 70°C

Storage temperature -50°C to 85°C

Relative humidity 0% to 95%

5- DATA Illumination

5.1- Transceiver

DATA1: Pin1: no use

Pin2: no use

Pin3: OUTPUT RS485+

Pin4: OUTPUT RS485-

5.2- Receiver

DATA1: Pin1: no use

Pin2: no use

Pin3: INPUT RS485+

Pin4: INPUT RS485-

6- Indicators

TR SYNC (local data in sync)

PWR (power natural)

RE CD (fiber established)

SYNC (TR RE in sync)

PWR (power natural)

7- OPTICAL CONNECTOR: FC/PC

OPTICAL wavelength:

Positive direction for 1310 um

Back direction for 1550 um

Dimension:

Video way number	Size	Weight
1 way	110x110x25mm	0.7kg/pair
2 ways	110x86x26mm	0.7kg/pair
4 ways	110x110x26mm	0.7kg/pair
8 ways	150x190x30mm	0.9kg/pair
16 ways	170x240x45mm	2kg/pair
16 ways rack mount	485x200x45mm	3.2kg/pair
32 ways rack mount	485x200x45mm	4.5kg/pair

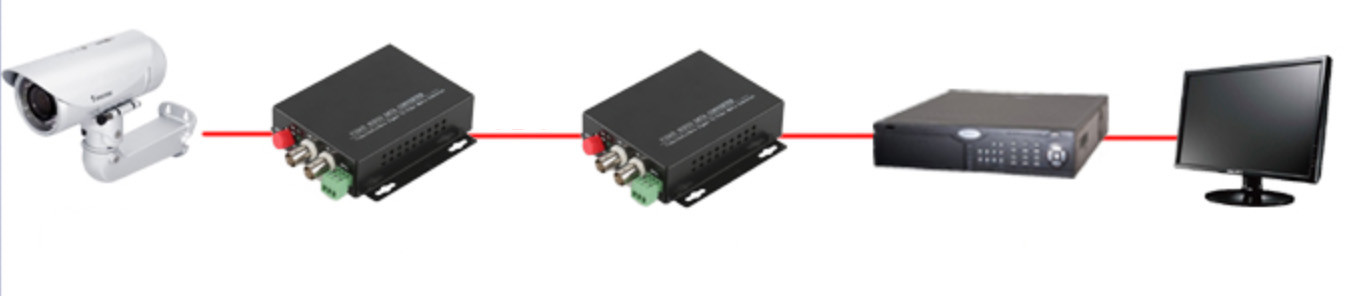

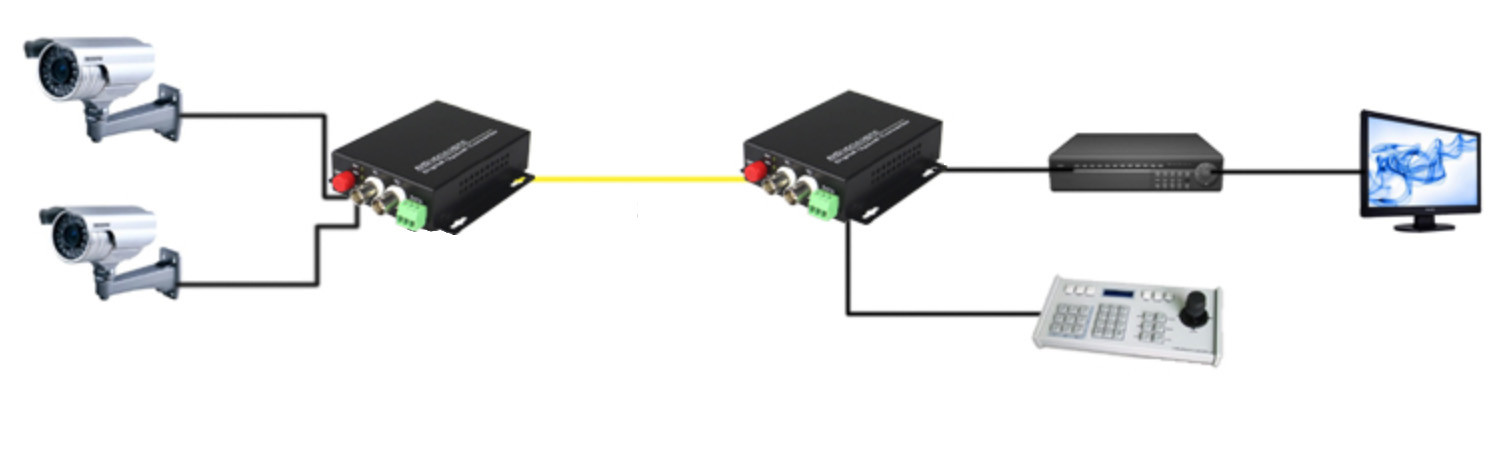

Applications:

Ordering informations:

Item	Choice
Video	Max. 16 ways
Data	Max. 16 ways
Audio	Max. 8 ways
Ethernet	Max. 2 ways
Telephone	Max. 2ways
Optical	Max. 2 ways SC, FC optional
Mode	Single mode
Fiber	Dual fiber/ Single fiber
Distance	20km

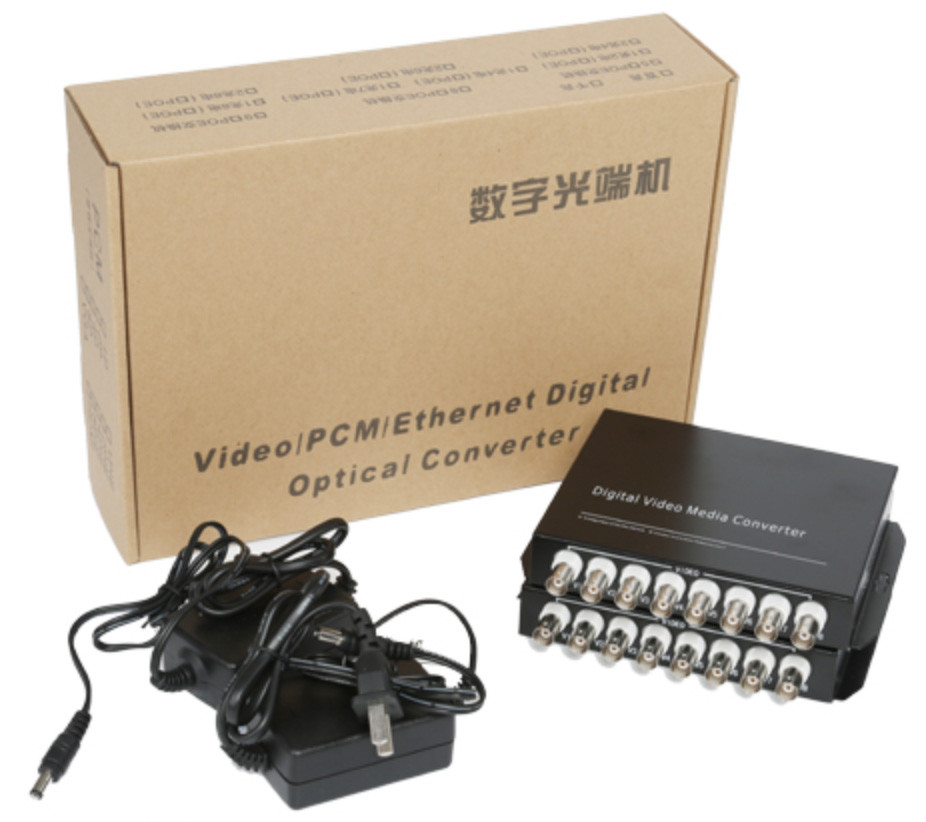

Package:

Carton box, wooden pallet

Shipping:

By International Express such as TNT, DHL, UPS, etc
By Air: CA, HA, AA, EA, etc
By Sea
